Tinned Copper FEP Insulated Heat Resistant Flexible Hookup Wire
Application:
FEP High Temperature Wire is used for Connecting household appliances, Home appliances, Temperature sensors, Lighting equipment and instruments, Small motors, Automotive interior cables, Electronic appliance, etc
Features:
1. High and low temperature resistance
2. No moisture absorption
3. Excellent fire resistance
4. Aging resistance
5. Anti-interference
6. Corrosion resistant
7. Durable and Long service life
8. Excellent electric insulationerty
Properties:
1. Rated voltage: 600V or Lower
2. Working temperature: -65℃~+200℃
3. Conductor Materials: Tinned or Silver Plated Copper
4. Conductor Type: Stranded
5. Insulation: FEP Insulated
6. Wire Gauge: 10~32AWG
7. Colors: White, Blue, Red, Black, Yellow, Green...
| Type |
| FEP insulated Silver plated copper conductor lead wire |
| FEP insulated Tinned copper conductor lead wire |
| FEP insulated Tinned or silver plated copper conductor shielding lead wire |
| FEP insulated Tinned or silver plated stranded copper twisted lead wire |
| FEP insulated Tinned or silver plated stranded copper twisted shield lead wire |
Wire gauge
(AWG) | Section area
(mm2) | Conductor construction
piece/diameter
(mm) | Insulation thickness
(mm) | Outer diameter
(mm) | Max. Conductor resistance at 20℃
(Ω/Km) | Packing length
(m) |
| 10awg | 5mm2 | 37x0.43mm | 0.33mm | 3.67 | 3.546 | 305 |
| 12awg | 3mm2 | 19x0.49mm | 0.33mm | 3.11 | 5.64 | 305 |
| 14awg | 2mm2 | 19x0.37mm | 0.33mm | 2.51 | 8.96 | 305 |
| 16awg | 1.2mm2 | 19x0.3mm | 0.33mm | 2.16 | 14.6 | 305 |
| 17awg | | 19x0.26mm | 0.33mm | 1.96 | 18.3 | 305 |
| 18awg | 1mm2 | 19x0.23mm | 0.33mm | 1.81 | 23.2 | 305 |
| 20awg | 0.5mm2 | 19x0.2mm | 0.33mm | 1.61 | 36.7 | 305 |
| 1x0.8mm | 0.33mm | 1.46 | 35.2 | 305 |
| 22awg | 0.3mm2 | 19x0.16mm | 0.33mm | 1.46 | 59.4 | 610 |
| 1x0.65mm | 0.33mm | 1.31 | 56.4 | 610 |
| 24awg | 0.2mm2 | 7x0.2mm | 0.33mm | 1.26 | 94.2 | 610 |
| 1x0.5mm | 0.33mm | 1.16 | 89.3 | 610 |
| 26awg | 0.12mm2 | 7x0.16mm | 0.33mm | 1.14 | 150 | 610 |
| 1x0.4mm | 0.33mm | 1.06 | 143 | 610 |
| 28awg | 0.08mm2 | 7x0.12mm | 0.33mm | 1.02 | 239 | 610 |
| 1x0.32mm | 0.33mm | 0.98 | 227 | 610 |
| 30awg | 0.06mm2 | 7x0.1mm | 0.33mm | 0.96 | 381 | 610 |
| 1x0.254mm | 0.33mm | 0.914 | 361 | 610 |
| 32awg | 0.035mm2 | 7x0.08mm | 0.41mm | 1.06 | 664.8 | 610 |
| 1x0.2mm | 0.41mm | 1.02 | 588.3 | 610 |
Noted: Specification and core no. are not limited to above regulation, they could be customized.
Product Tags:
|
|

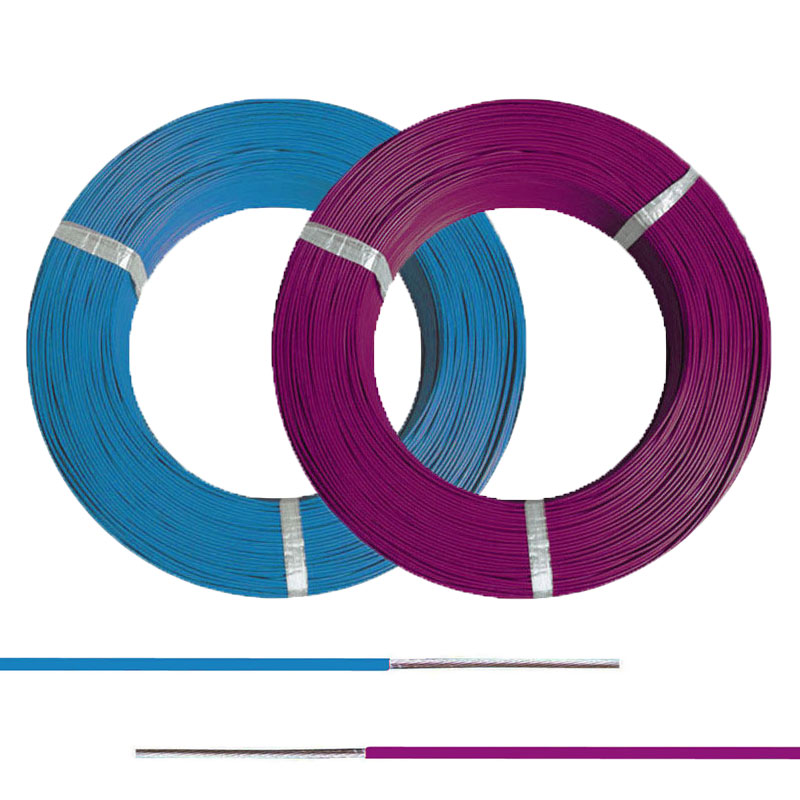

Tinned FEP Insulated Wire Images
|
