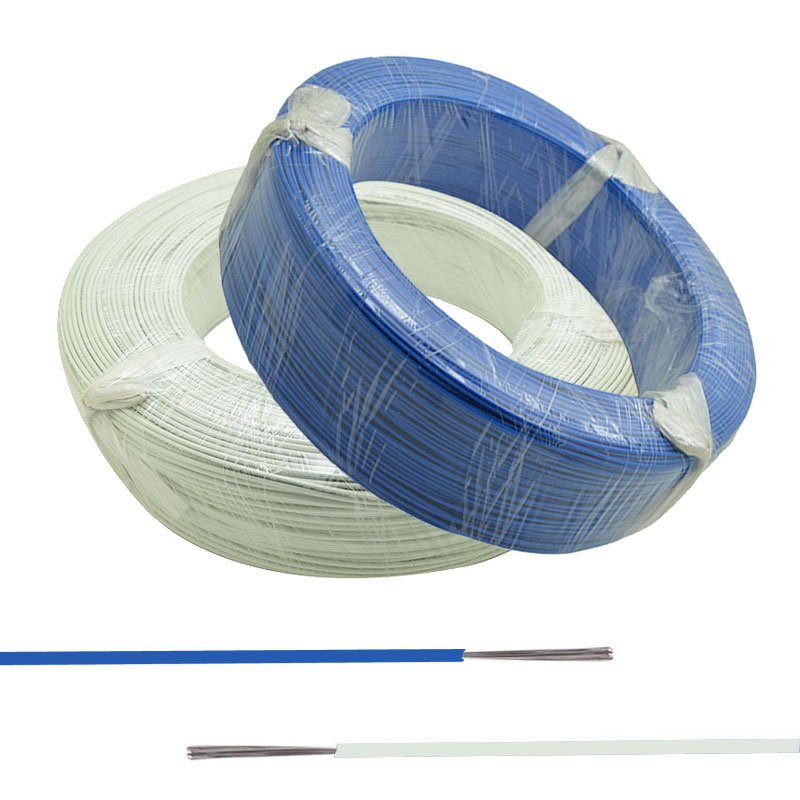

Tinned Stranded Copper 14 16 18 Gauge ETFE High Temp Range Wire
Application:
1. In the electronic industry, it can be used for temperature compensation wire, low temperature resistance wire, high temperature heating wire, aging resistance wire and flame retardant wire.
2. In household appliance industry, it can be used for internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, computer rice cooker, electronic hot water bottle, electric heater, electric oven, electric frying pan, lamps and lanterns, etc.
Features:
1. Small diameter saves space
2. Excellent low temperature characteristics
3. Excellent electric characteristics,mechanical strength heat resistance, chemical resistance, and flame resistance.
4. ETFE insulated wire offers a higher tensile and impact strength than PTFE as well as greater dielectric strength and radiation resistance.
5. Oil, flame, and radiation resistance
Properties:
Insulated: Etfe high temperature Insulated
Core Number: Single Core
Conductor: Tinned Coated Stranded Copper
Operating Temperature: -65℃ ~ +150 or 200℃
Voltage Rating: 600V or 250V
Insulation Resistance(at 20℃): ≥100MΩ.km
Available Colors: Red, Green, Brown, Grey, Blue, White, Yellow, Black, Violet and etc..
Cross-section area
(mm²) | Conductor
(mm) | Reference Outer Diameter
(mm) | Reference weight
kg/km | Max.DC resistance at 20℃
(Ω/Km) |
| FF40-1 | FF40-1 |
| 0.14 | 19/0.1 | 1.02 | 2.66 | 136.0 |
| 0.2 | 19/0.12 | 1.14 | 3.82 | 90.4 |
| 0.4/0.3 | 19/0.16 | 1.32 | 5.48 | 53.1 |
| 0.6/0.5 | 19/0.2 | 1.52 | 7.98 | 32.4 |
| 0.75 | 19/0.23 | 1.70 | 9.99 | 24.6 |
| 1.0 | 19/0.26 | 1.80 | 11.70 | 20.4 |
| 1.2 | 19/0.28 | 2.01 | 14.80 | 16.6 |
| 1.5 | 19/0.32 | 2.25 | 18.20 | 12.7 |
| 2.0 | 19/0.36 | 2.36 | 22.20 | 10.0 |
| 2.5 | 37/0.3 | 2.78 | 30.40 | 7.43 |
| 3.0 | 37/0.32 | 2.90 | 33.60 | 6.63 |
| 4.0 | 37/0.37 | 3.38 | 45.40 | 4.88 |
| 5.0 | 37/0.4 | 3.53 | 52.20 | 4.13 |
| 6.0 | 37/0.45 | 4.05 | 65.60 | 3.30 |
