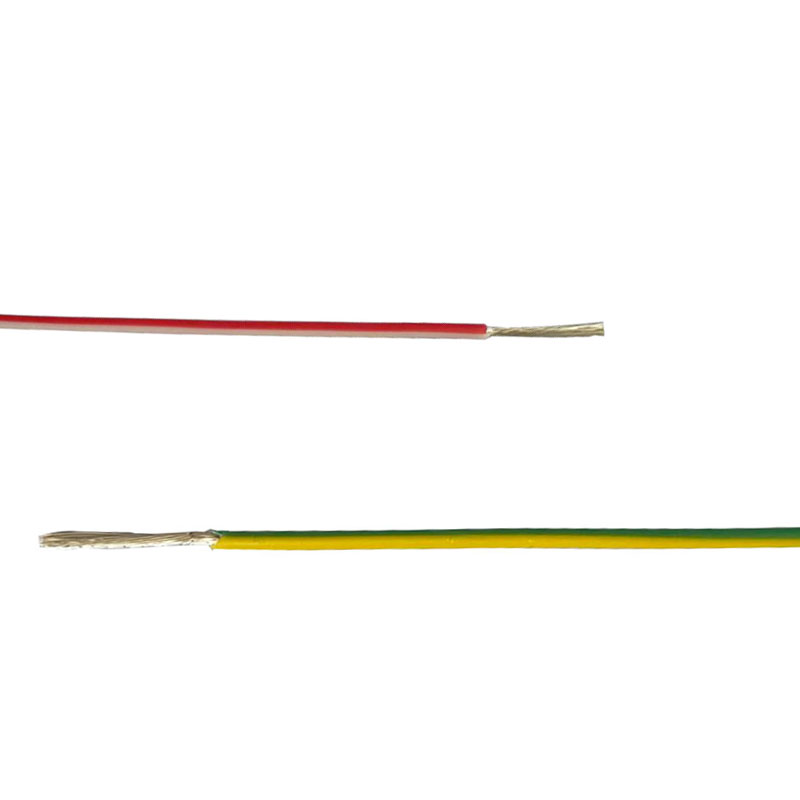

Multi-Stranded Silver Plated Copper High Temperature Resistant FEP Insulated Wire
FEP wire has excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc. Excellent electrical insulation performance, high voltage resistance, high frequency loss, no moisture absorption, insulation resistance; Excellent fire resistance, aging resistance, long service life.
Properties:
1. Rated voltage: AC600V or lower
2. Working temperature: -65Degree ~ +200Degree
3. Conductor Type: Stranded or Solid
4. Conductor Materials: Silver or Tinned Plated Copper Conductor
5. Insulated Materials: FEP Insulation
6. Wire Gauge: 10AWG, 12AWG, 16AWG, 18AWG, 22AWG, 24AWG, 26AWG, 28AWG ...
7. Available Colors: White, Clear, Black, Gray, Yellow, Blue, Violet, Red, Blue, Green...
| Type |
| FEP insulation Silver plated copper conductor lead wire |
| FEP insulation Tinned copper conductor lead wire |
| FEP insulation Tinned or silver coated copper conductor shielding lead wire |
| FEP insulation Tinned or silver coated stranded copper twisted lead wire |
| FEP insulation Tinned or silver coated stranded copper twisted shield lead wire |
Wire gauge
(AWG) | Section area
(mm2) | Conductor construction
piece/diameter
(mm) | Insulation thickness
(mm) | Outer diameter
(mm) | Max. Conductor resistance at 20℃
(Ω/Km) | Packing length
(m) |
| 10awg | 5mm2 | 37x0.43mm | 0.33mm | 3.67 | 3.546 | 305 |
| 12awg | 3mm2 | 19x0.49mm | 0.33mm | 3.11 | 5.64 | 305 |
| 14awg | 2mm2 | 19x0.37mm | 0.33mm | 2.51 | 8.96 | 305 |
| 16awg | 1.2mm2 | 19x0.3mm | 0.33mm | 2.16 | 14.6 | 305 |
| 17awg | | 19x0.26mm | 0.33mm | 1.96 | 18.3 | 305 |
| 18awg | 1mm2 | 19x0.23mm | 0.33mm | 1.81 | 23.2 | 305 |
| 20awg | 0.5mm2 | 19x0.2mm | 0.33mm | 1.61 | 36.7 | 305 |
| 1x0.8mm | 0.33mm | 1.46 | 35.2 | 305 |
| 22awg | 0.3mm2 | 19x0.16mm | 0.33mm | 1.46 | 59.4 | 610 |
| 1x0.65mm | 0.33mm | 1.31 | 56.4 | 610 |
| 24awg | 0.2mm2 | 7x0.2mm | 0.33mm | 1.26 | 94.2 | 610 |
| 1x0.5mm | 0.33mm | 1.16 | 89.3 | 610 |
| 26awg | 0.12mm2 | 7x0.16mm | 0.33mm | 1.14 | 150 | 610 |
| 1x0.4mm | 0.33mm | 1.06 | 143 | 610 |
| 28awg | 0.08mm2 | 7x0.12mm | 0.33mm | 1.02 | 239 | 610 |
| 1x0.32mm | 0.33mm | 0.98 | 227 | 610 |
| 30awg | 0.06mm2 | 7x0.1mm | 0.33mm | 0.96 | 381 | 610 |
| 1x0.254mm | 0.33mm | 0.914 | 361 | 610 |
| 32awg | 0.035mm2 | 7x0.08mm | 0.41mm | 1.06 | 664.8 | 610 |
| 1x0.2mm | 0.41mm | 1.02 | 588.3 | 610 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
