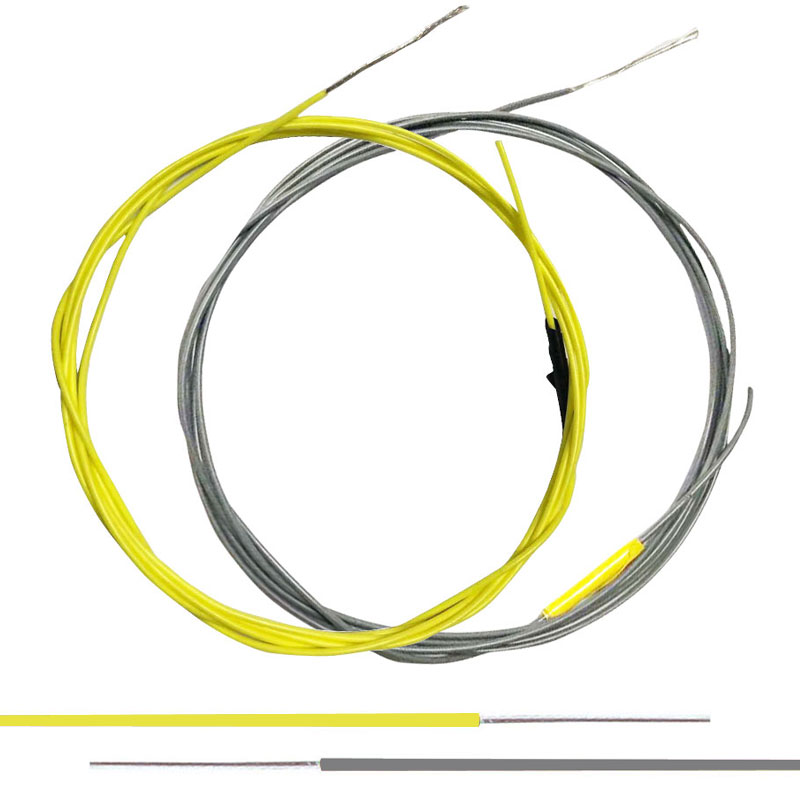

Tinned / Silver Plated Copper FEP Insulated Wire For Electric Oven Cooking Heater

  • 1
  • 2

Brand Name : SANCO

Model Number : AF-200

Certification : ISO9001

Place of Origin : China

MOQ : 100m

Price : Negotiation

Supply Ability : 250000M/Per Month

Delivery Time : 3~8days

Packaging Details : Cable tray or Packing in roll with carton box

Insulated Material : FEP

Temperature Range : -65 Degree ~+200 Degree

Core Number : Single Core

Wire Gauge : 12AWG, 14AWG, 16AWG, 18AWG, 20AWG, 22AWG, 24AWG...

Conductor Materials : Silver/ Tinned Plated Copper

Rated Voltage : AC 600V or Lower

Colors : Black, White, Grey, Blue, Yellow, Red, Violet, Clear, Brown, Green..

Sample : Free if avaible in stock

Conductor Type : Stranded or Solid

Customized Service : Yes

Contact Now

Tinned / Silver Plated Copper FEP Insulated Electric Oven Cooking Heater Wire



Product features:

Wear resistant, scratch resistant, easy to rip off, high and low temperature resistant, anti-aging, corrosion resistant, anti-interference.



Properties:

1. Rated voltage: AC600V or lower
2. Working temperature: -65 Degree ~ +200 Degree

3. Conductor Type: Stranded or Solid
4. Conductor Materials: Tinned  Plated / Silver Plated Copper
5. InsulationMaterials: FEP

6. AWG: 12AWG, 14AWG, 16AWG, 18AWG, 22AWG, 24AWG, 26AWG...
7. Colors: White, Black, Gray, Yellow, Blue, Violet, Red, Transparent, Green...



Type
FEP insulation Silver plated copper conductor lead wire
FEP insulation Tinned copper conductor lead wire
FEP insulation Tinned or silver coated copper conductor shielding lead wire
FEP insulation Tinned or silver coated stranded copper twisted lead wire
FEP insulation Tinned or silver coated stranded copper twisted shield lead wire


Tinned / Silver Plated Copper FEP Insulated Wire For Electric Oven Cooking Heater

Wire gauge
(AWG)		 Section area
(mm2)		 Conductor construction
piece/diameter
(mm)		 Insulation thickness
(mm)		 Outer diameter
(mm)		 Max. Conductor resistance at 20℃
(Ω/Km)		 Packing length
(m)
10awg 5mm2 37x0.43mm 0.33mm 3.67 3.546 305
12awg 3mm2 19x0.49mm 0.33mm 3.11 5.64 305
14awg 2mm2 19x0.37mm 0.33mm 2.51 8.96 305
16awg 1.2mm2 19x0.3mm 0.33mm 2.16 14.6 305
17awg   19x0.26mm 0.33mm 1.96 18.3 305
18awg 1mm2 19x0.23mm 0.33mm 1.81 23.2 305
20awg 0.5mm2 19x0.2mm 0.33mm 1.61 36.7 305
1x0.8mm 0.33mm 1.46 35.2 305
22awg 0.3mm2 19x0.16mm 0.33mm 1.46 59.4 610
1x0.65mm 0.33mm 1.31 56.4 610
24awg 0.2mm2 7x0.2mm 0.33mm 1.26 94.2 610
1x0.5mm 0.33mm 1.16 89.3 610
26awg 0.12mm2 7x0.16mm 0.33mm 1.14 150 610
1x0.4mm 0.33mm 1.06 143 610
28awg 0.08mm2 7x0.12mm 0.33mm 1.02 239 610
1x0.32mm 0.33mm 0.98 227 610
30awg 0.06mm2 7x0.1mm 0.33mm 0.96 381 610
1x0.254mm 0.33mm 0.914 361 610
32awg 0.035mm2 7x0.08mm 0.41mm 1.06 664.8 610
1x0.2mm 0.41mm 1.02 588.3 610

Noted:Specification and core no. are not limited to above regulation,they could be customized.

Tinned / Silver Plated Copper FEP Insulated Wire For Electric Oven Cooking Heater





Tinned / Silver Plated Copper FEP Insulated Wire For Electric Oven Cooking Heater
